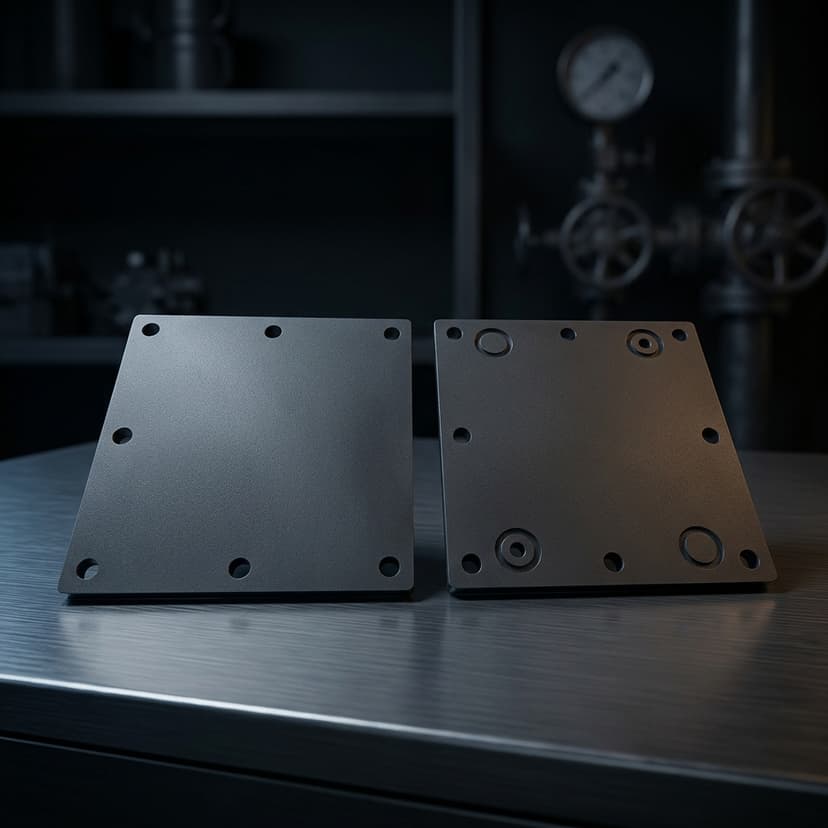

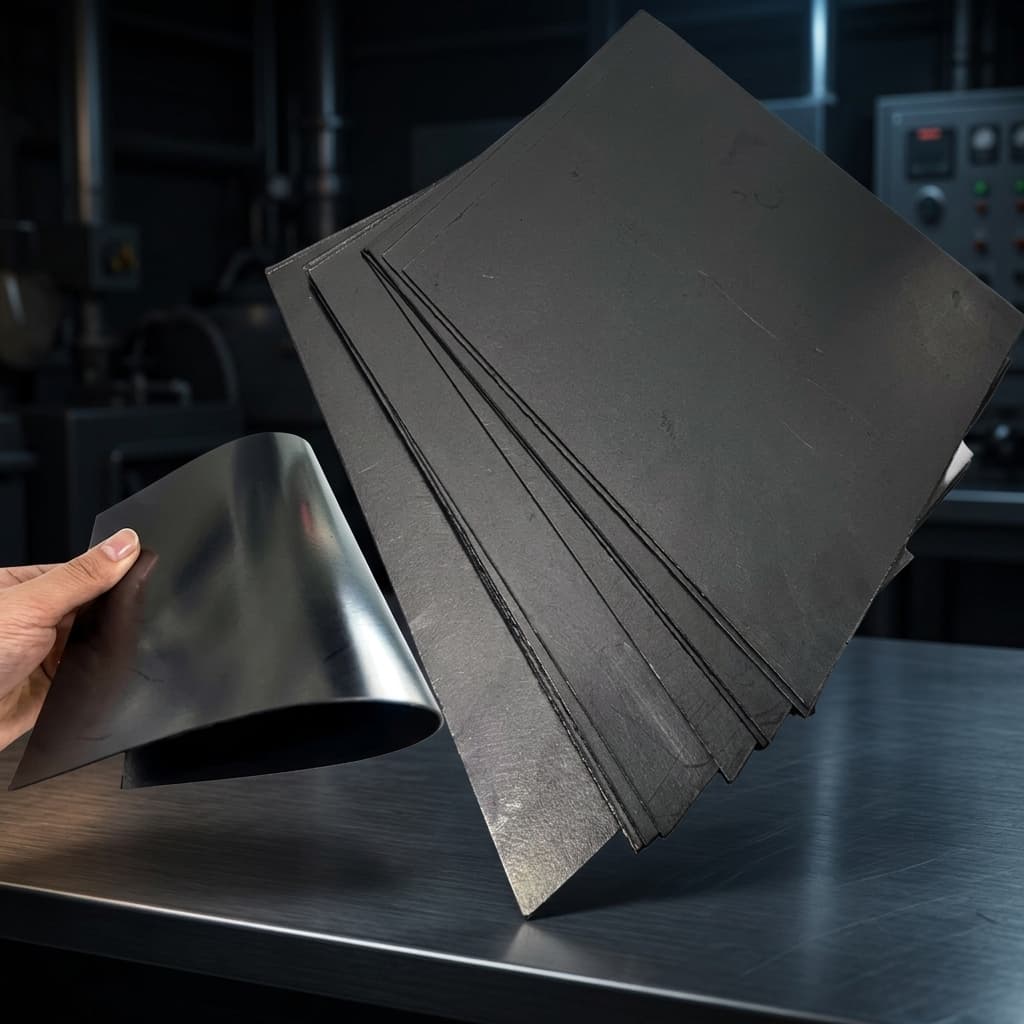

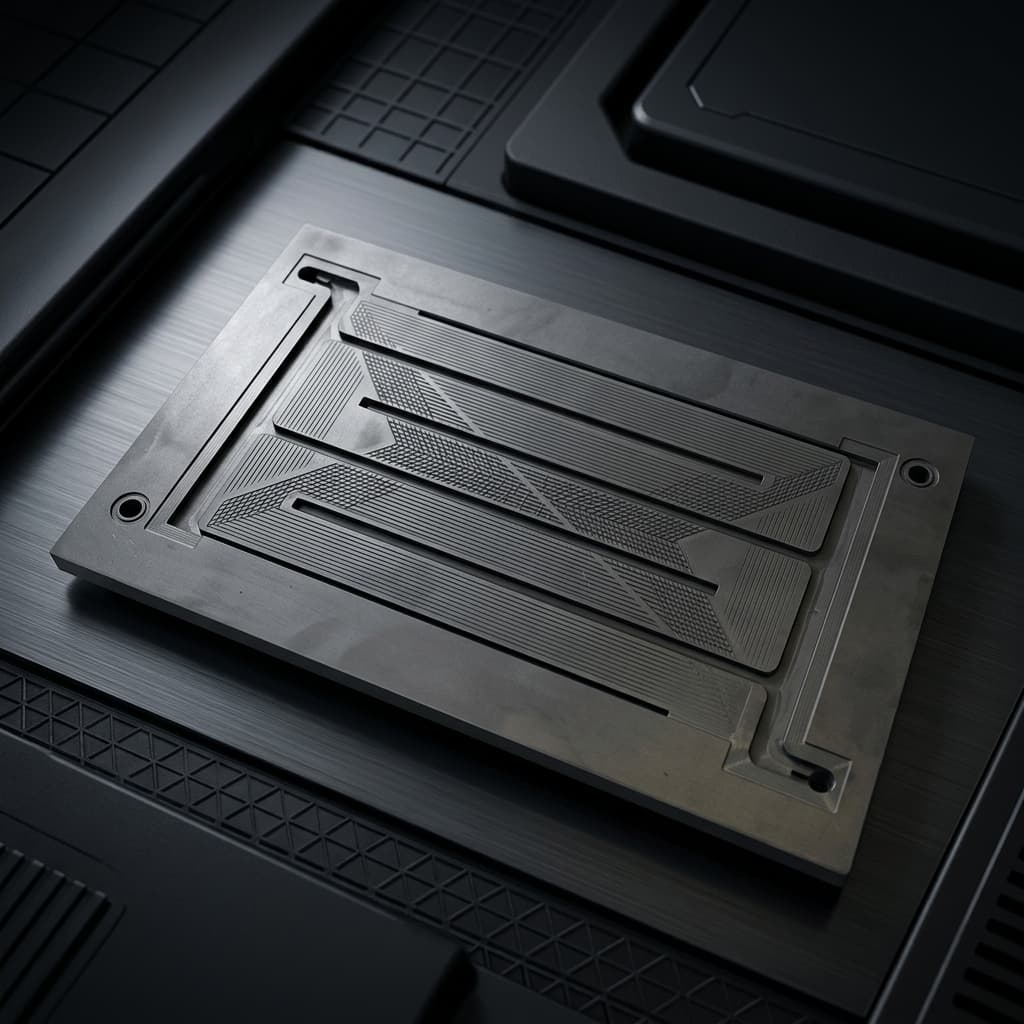

CNC machined graphite bipolar plates, flow-field plates, and resin-impregnated graphite plates for fuel cell, electrolyzer, and flow battery prototype or low-volume programs.
Complete RFQs are easier to review within 1-2 business days when drawings, graphite grade, quantity, and destination are included.
| Option | Best Fit | Watchouts |
|---|---|---|
| Prototype machined bipolar plate | Design validation when flow-field geometry is still changing and tooling cost should stay low. | Very thin ribs, deep channels, and tight flatness can increase breakage and inspection risk. |
| Resin-impregnated graphite plate | Porosity-sensitive fuel cell or battery plates where gas or liquid leakage must be reduced. | Media chemistry, temperature, and cleaning method must be checked against the impregnation choice. |
| Flow battery graphite plate | Large-area liquid-flow plates with ports, manifolds, and repeat stack alignment requirements. | Large plates need careful review of flatness, packing support, and fixture strategy during machining. |
Confirm channel geometry, ports, gasket compression areas, active area, and alignment references.
Select graphite and treatment route based on porosity, media, temperature, conductivity, and certificate needs.
Machine small batches with fragile-rib handling, first-article inspection, and revision tracking.
Use validation feedback to lock revision, inspection points, packing, and repeat order controls.
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Flow-field detail | Buyer-defined channel depth, rib width, porting, and active area | Small changes in channels and ribs affect pressure drop, contact area, manufacturability, and breakage risk. |
| Porosity control | As-machined graphite or resin-impregnated graphite by application | Gas and liquid service may require impregnation or additional testing beyond dimensional inspection. |
| Program stage | Prototype, validation batch, or low-volume repeat supply | The right machining and inspection plan depends on whether the drawing is still changing. |
Yes. Machined graphite plates are often useful for prototypes and validation when the flow-field design is still evolving.
No. It depends on porosity sensitivity, media, temperature, pressure, and test requirements. The RFQ should state leakage expectations clearly.
Send the full plate drawing or STEP file, channel details, ports, gasket lands, thickness, flatness, material requirement, and quantity.
