Fuel Cell and Flow Battery Graphite Plates

Machined graphite plate sourcing for fuel cell, electrolyzer, and redox flow battery teams developing channels, ports, stack hardware, and resin-impregnated plate programs.

Target Buyer:Best for clean energy hardware teams that need drawing-based graphite plates, fast design iteration, and clear handoff from prototype to repeat supply.

Send RFQ by Email Discuss on WhatsApp

Complete RFQs are easier to review within 1-2 business days when drawings, graphite grade, quantity, and destination are included.

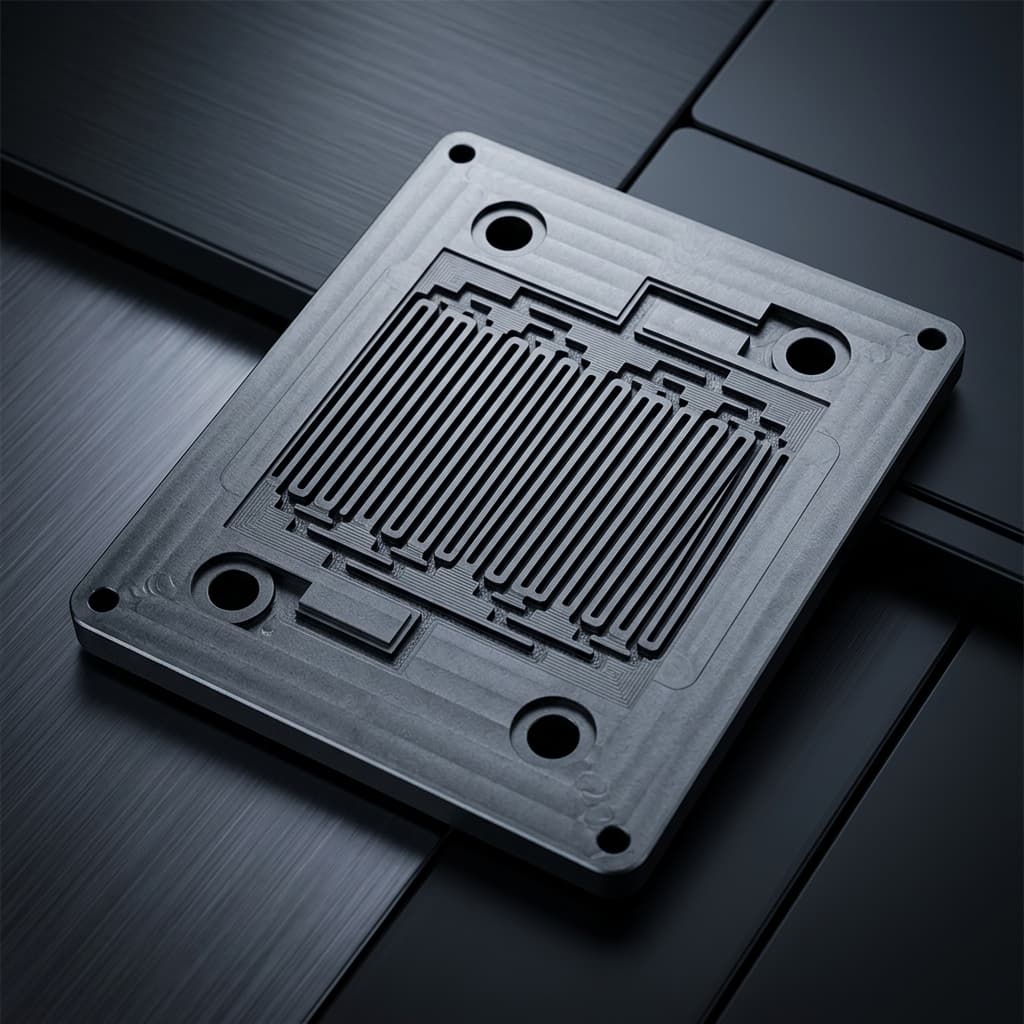

CNC machined graphite bipolar plate for fuel cell hardware

Solution Highlights

Prototype and validation support for graphite bipolar plates and flow-field plates
Channel, port, gasket land, flatness, leak-sensitivity, and impregnation review
Revision-controlled small-batch machining before tooling or higher-volume conversion

Common Use Cases

PEM fuel cell development
Vanadium redox flow battery stack hardware
Electrolyzer and electrochemical reactor plates
Pilot stacks, lab fixtures, and design-validation builds

Implementation Focus

Review active area, channel pattern, port location, gasket land, plate thickness, and alignment features as one stack interface
Confirm grade, impregnation route, leak expectation, media compatibility, and post-machining cleaning before production release
Track revision status, sample validation feedback, and first-article inspection for repeat plate orders

Application Evaluation Matrix

Evaluation Metric	Typical Range	Buyer Relevance
Design maturity	Prototype, validation batch, or repeat low-volume supply	Early designs need flexible CNC machining and revision tracking more than high-volume tooling assumptions.
Leak sensitivity	As-machined graphite, resin-impregnated graphite, or buyer-specified test requirement	Plate porosity and media compatibility affect stack performance and acceptance testing.
Stack interface	Channels, ports, gasket lands, alignment holes, and compression surfaces	A plate can meet standalone dimensions but still fail if stack interface assumptions are unclear.

RFQ Preparation Checklist

Plate drawing, STEP file, active area, channel design, porting, gasket lands, and stack references
Graphite grade, resin impregnation requirement, conductivity or leak expectation, and media chemistry
Thickness, flatness, parallelism, surface finish, inspection plan, and sample validation schedule
Prototype quantity, repeat forecast, destination, certificates, and export paperwork

Risk and Mitigation

Flow-field design changes after a batch is produced: Keep revision-controlled drawings, separate prototype batches, and confirm validation feedback before repeat orders.
Leakage or porosity is discovered too late: Discuss resin impregnation, pressure or leak expectations, media, and inspection responsibility during RFQ.
Large or thin plates warp or break during handling: Review thickness, fixture strategy, flatness tolerance, support packing, and shipping orientation before machining.

Recommended Products

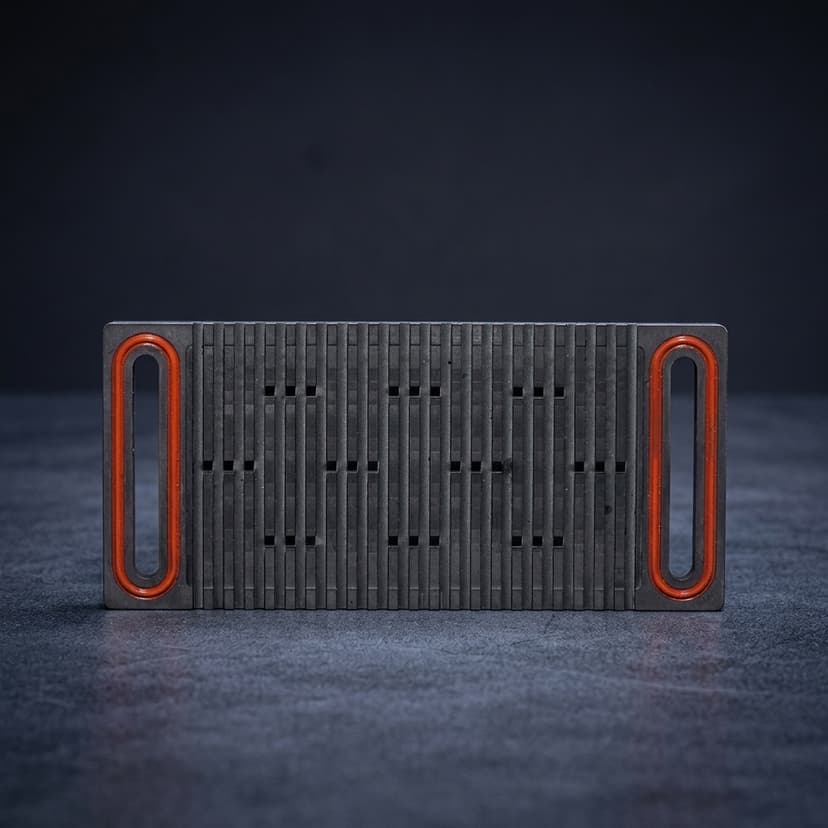

Flow battery graphite bipolar plate with ports and channels

Resin-impregnated graphite bipolar plate for stack applications

Buyer FAQ

Why use CNC machined graphite plates for early fuel cell work?

CNC machining lets teams change channel designs and validate stack behavior before committing to production tooling.

Can flow battery plates be quoted in large formats?

Large plates can be reviewed, but flatness, thickness, porting, packing support, and material availability must be confirmed before quote lock.

What makes a good RFQ package for graphite battery plates?

Include drawings, channel data, ports, stack references, material and impregnation requirements, validation stage, quantity, and destination.
