Geometry package
Minimum: STEP/IGES plus 2D PDF with datum and tolerance notes
Prevents quoting from a visual part model with missing inspection intent.
Configure your hot bending mold requirements to screen graphite grade, coating risk, supplier evidence, and the next RFQ action before sending drawings.
Complete RFQs are easier to review within 1-2 business days when drawings, graphite grade, quantity, and destination are included.
Output: grade + coating risk + RFQ checklist · Published July 18, 2026 · Last reviewed July 18, 2026

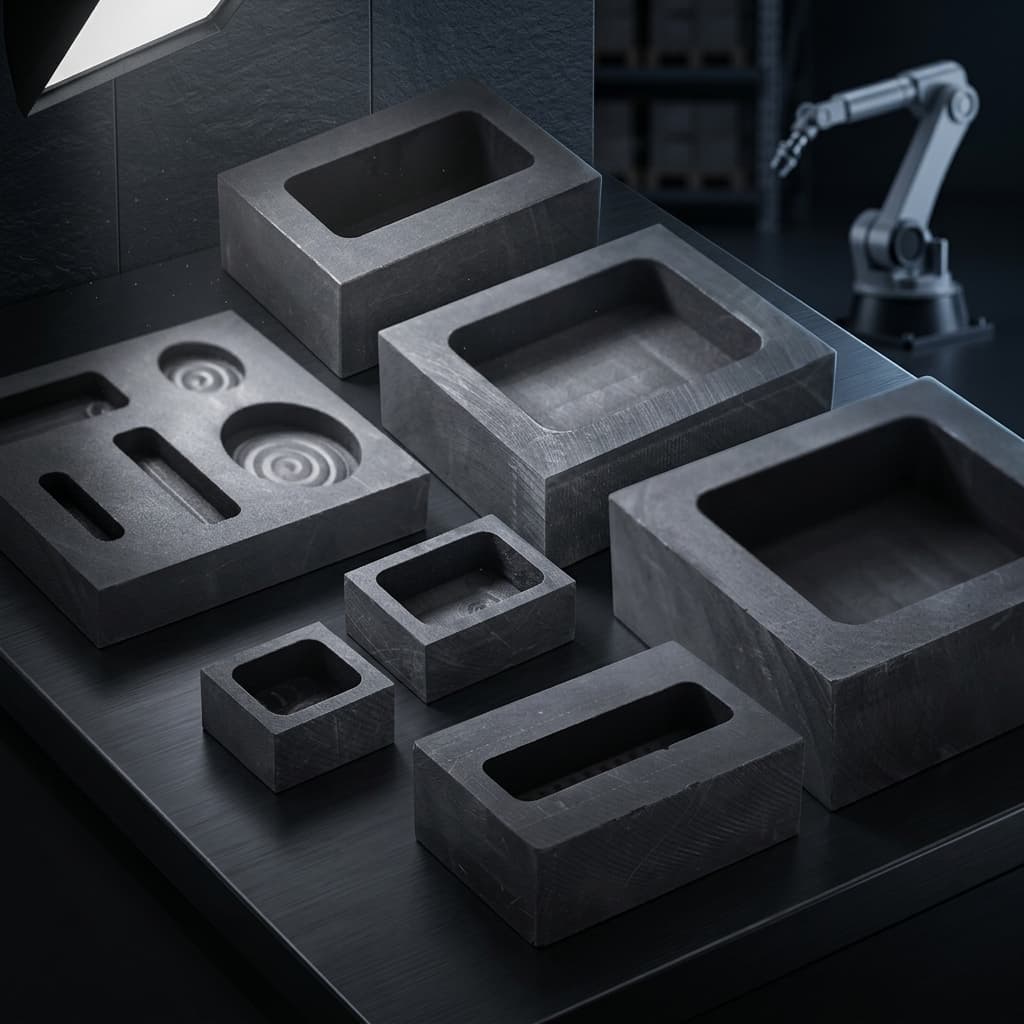

3D glass graphite molds manufacturer RFQ reference: polished cavity zones need grade evidence, Ra inspection, and protected packing before production release.
Supplier qualification lens
For 3D cover glass, the supplier must connect cavity geometry, material data, atmosphere, surface finish, handling, and export packing. A thin catalog claim such as "high density graphite mold" is not enough to release a production order.
Decision summary
Published glass and graphite property data can screen the CTE-risk direction, but the production mold offset should be validated against the buyer's actual cycle.
Evidence: S1, S2, S4-S5
Cosmetic cover-glass cavities may need ultra-fine graphite and polishing, while supports and non-contact faces can use a more economical finish target.
Evidence: S4-S6
A manufacturer should not promise production mold life from drawings alone; atmosphere, oxygen exposure, coating, cleaning, and first heat-run data decide the release plan.
Evidence: S3, S6
Source & data verification
Published July 18, 2026; reviewed July 18, 2026. These sources anchor the material and process-risk logic; they do not replace buyer drawings, grade certificates, coating acceptance criteria, or sample-run data.
Aluminosilicate cover-glass thermal expansion and softening-point reference.
S2SCHOTT BOROFLOAT technical detailsBorosilicate glass low-CTE and thermal-resistance reference.
S3SGL Carbon SIGRAFLEX thermal stabilityGraphite oxidation boundary reference for air-exposed high-temperature use.
S4Toyo Tanso isotropic graphite overviewIsotropic graphite heat resistance, low thermal expansion, and machinability reference.
S5Toyo Tanso isotropic graphite property dataTypical density and CTE ranges; buyer must still request grade certificates.
S6Glass hot bending graphite mold surface treatment patentPublic example showing why graphite tool marks, pores, and surface treatment matter in hot bending.
| Route | First fit | Validation |
|---|---|---|
| Fine-grain isostatic graphite5-10 µm screening target | Pilot 3D glass molds, non-cosmetic contact areas, support toolingRisk: May need added polishing allowance for visible glass surfaces | Material certificate + first heat-run inspection |
| Ultra-fine isostatic graphite≤ 4 µm screening target | Cosmetic cover-glass cavities and tighter edge profilesRisk: Higher cost and billet availability risk | Grade data + Ra inspection + packing plan |
| Coated or treated graphite routeBase grade plus treatment spec | Longer production runs, open-air exposure, or stricter release marksRisk: Coating sequence and rework limits must be quoted | Coupon run + coating acceptance + replacement interval |
| Route | Best for | Tradeoff |
|---|---|---|
| Prototype mold only | New glass shape or unreleased furnace cycle | Fast learning, but no production life promise |
| Uncoated fine-grain graphite | Short trials or lower-risk functional surfaces | Lower cost, but oxidation and surface-change risk remain |
| Ultra-fine isostatic graphite | Cosmetic 3D cover glass and tighter curved profiles | Better surface path, higher material and machining cost |
| Coated / treated production route | Mass-production release or oxygen-exposed high heat | More validation steps, but clearer replacement planning |
| Decision | Evidence | Use | Known limit |
|---|---|---|---|
| Glass family and temperature band | S1-S2 | Separates aluminosilicate, borosilicate, and soda-lime screening paths. | Final cycle must come from the glass maker or furnace trial. |
| Graphite grade route | S4-S5 | Frames fine-grain versus ultra-fine isostatic graphite selection. | Published typical data is not a substitute for a batch certificate. |
| Oxidation and atmosphere risk | S3 | Flags high-temperature open-air operation as a boundary state. | Oxygen level, hold time, surface area, and cleaning method change life. |
| Surface-transfer risk | S6 | Explains why cavity roughness, pores, and treatment affect glass marks. | Public patent evidence does not validate a specific supplier coating. |
Minimum: STEP/IGES plus 2D PDF with datum and tolerance notes
Prevents quoting from a visual part model with missing inspection intent.
Minimum: Glass family, target forming band, hold time, and atmosphere
Controls grade, CTE offset, oxidation exposure, and release assumptions.
Minimum: Mark optical, cosmetic, functional, and non-contact areas
Avoids over-polishing support faces or under-polishing visible cavities.
Minimum: First article, sacrificial coupons, Ra check, and inspection interval
Turns cycle-life claims into a measurable production release plan.
Minimum: Destination, Incoterms, fragile-edge packing, and document needs
Protects brittle cavities and catches shipment paperwork gaps early.
| Check | Pass signal | Risk signal |
|---|---|---|
| Grade evidence | Batch certificate matches quoted grade, density, grain size, and CTE. | Supplier only states "high density graphite" with no property sheet. |
| Surface inspection | Ra method, measurement zones, and acceptable transfer-mark risk are listed. | Quote promises mirror finish without inspection method or polishing scope. |
| Thermal validation | Atmosphere, hold time, coating, and coupon plan are tied to the glass cycle. | Quote promises cycle life from drawings without heat-run conditions. |
| Packing control | Cavities, radii, and coated faces get separators, labels, and edge protection. | Molds ship as generic graphite blocks with no fragile-feature handling. |
A quote can say ultra-fine graphite while the certificate shows a broader grade family. Require grade property data, batch certificate, and acceptance criteria before release.
Sharp radii, thin ribs, and polished cavity edges need DFM, cutter strategy, inspection datum, and export packing before price and lead time are locked.
Ultra-fine material and coating are expensive. Split cosmetic contact zones from support zones so the RFQ buys precision where it changes glass quality.
A mold route proven for low-curvature glass may fail on steep 3D edges. Request first-article inspection and sacrificial coupons before scaling.
Graphite's thermal conductivity supports fast heating, but the glass maker cycle still controls the release profile.
High heat plus oxygen exposure is a boundary state. Quote coating, inert protection, or coupon runs instead of relying on unsupported life claims.
CTE mismatch is handled through offset assumptions and sample validation, not by copying the finished glass shape directly into graphite.
A budgetary prototype quote is possible, but production release should wait until glass family, forming band, atmosphere, hold time, finish zones, and inspection expectations are known.
No. It is usually the safer first candidate for cosmetic cover-glass cavities, but support tooling or non-visible surfaces can sometimes use fine-grain isostatic graphite if inspection and heat-run results support it.
Graphite oxidation risk changes sharply when heat and oxygen combine. Atmosphere data lets the supplier decide whether open-air trial, nitrogen or inert protection, coating, or coupon testing is the right path.
No. Drawing geometry is only one input. Useful mold life depends on glass chemistry, cycle temperature, oxygen exposure, cleaning, handling, coating behavior, and inspection intervals.
State the glass-side finish target by zone. Cosmetic contact faces may need an Ra 0.2-0.4 µm planning target, while support or non-visible areas may tolerate broader requirements.
The mold profile is reviewed against glass CTE, graphite CTE, temperature band, and cooling path. Offsets should be validated with sample data before committing to a production profile.
Coating or treatment becomes more important when the mold faces oxygen at high temperature, when surface-transfer risk is strict, or when the buyer needs repeat production rather than one-off trials.
Ask for material certificate, key-dimensional report, Ra inspection method, cavity photos, coated-face handling notes, and packing photos for fragile mold features.
Send STEP or IGES for machining geometry and a 2D PDF for tolerances, datum, surface finish, revision, material notes, and contact-zone labeling.
Use cavity separators, radius protection, non-abrasive wrapping for polished faces, orientation labels, and carton support that prevents edge loading during export shipment.
Send the default RFQ package and request a prototype mold plus sacrificial coupon plan. Use the first heat-run result to lock production grade, treatment, and inspection interval.
This supplier page focuses on manufacturer qualification and RFQ evidence. The solution page focuses on the broader hot-bending fit checker and process architecture.
Send drawings, glass family, forming cycle, contact-surface notes, atmosphere, quantity, and destination. We will return a manufacturability review with grade, treatment, inspection, and packing assumptions.
